Tri Clamp Seal – Gasket – Gaskets – Gasket – DIN ISO
Techniparts is also a specialist in Tri Clamp seals!
We have an extensive and versatile range of Tri Clamp Gaskets – Seals – Gaskets for you. The Tri Clamp itself is used to connect pumps, filters and other fittings.
If necessary, we provide you with appropriate advice with the choice of Tri Clamp Gasket – Seal – Gasket. We supply according to DIN ISO standard, also with approvals such as FDA, ADI, 3A sanitary standard and USP Class VI 6 certificates.
Available in the materials: NBR, Epdm, Viton ® Kalrez ® FKM FPM, Ptfe Teflon Envelope, Silicone.

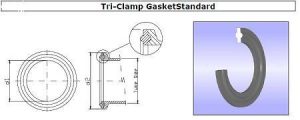

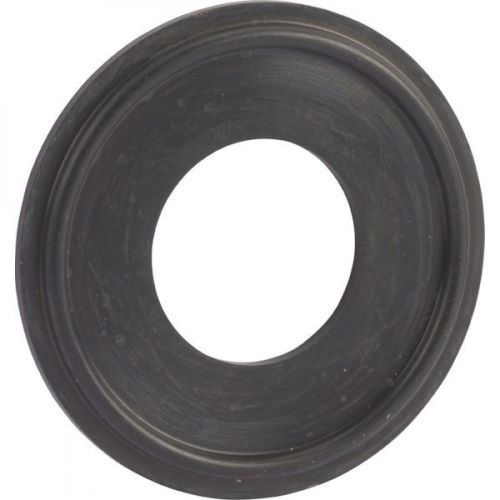

Tri Clamp Seal Standard

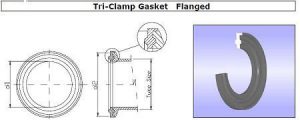

Tri Clamp seal flanged version

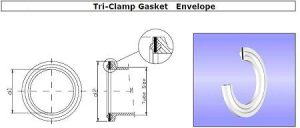

Tri Clamp Envelope version with Ptfe

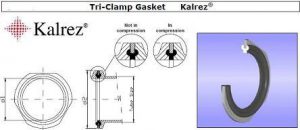

Tri Clamp seal Kalrez ® / FFKM

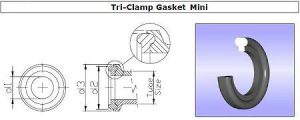

Tri Clamp seal Mini / Small
Special TriClamp seals including filter
DIN32676 Dimensions
DN10 34 x 10.2, DN15 34 x 16.2, DN20 34 x 20.2, DN25 50.5 x 26.2, DN32 50.5 x 32.2, DN40 50.5 x 38.2, DN50 64 x 50.2, DN65 91 x 66.2, DN80 106 x 81.2, DN100 119 x 100.2
ISO Dimensions 1127 & 2852
DN08 34 x 10.5, DN10 34 x 14.2, DN15 34 x 18.2, DN15 50.5 x 18.4, DN20 50.5 x 23.9, DN25 50.5 x 29.9, DN32 50.5 x 38.6, DN40 64 x 44.5, DN50 77.5 x 56.6, DN65 91 x 72.3, DN80 106 x 85.1, DN100 130 x 110.5 en DN 06 Mini
Applications: Pharmaceuticals, Pharmaceutical Industry, Biotechnology and Food processing, Food Industry, Dairy, Dairy factories, Cheese factories, Piping, Valves, Taps, Stainless Steel Valves, Filters.
You can contact us for all materials NBR, Epdm, Viton FKM FPM, Ptfe Teflon Envelope, Silicone, Tuf-Flex, Tuf Steel FDA CFR-177.2600, FDA CFR-177.1550, USP Class VI 6.
